Here are some key characteristics and components of passive networks:

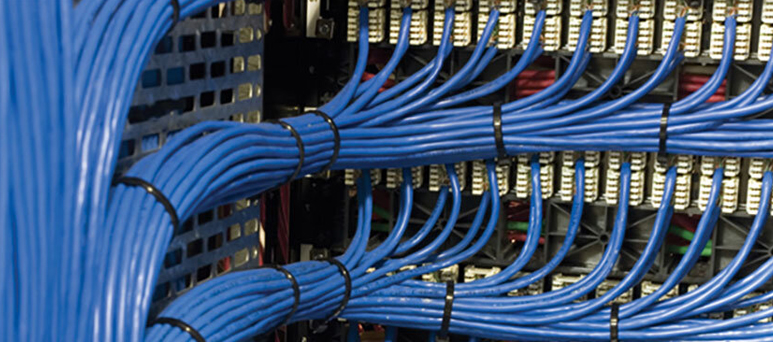

Cables: Passive networks utilize cables to transmit signals between network devices. These cables can include coaxial cables, twisted pair cables (such as Cat5e or Cat6), and optical fibers. The choice of cable depends on factors like distance, bandwidth requirements, and environmental conditions.
Connectors: Connectors are used to join cables and network devices together. Common connector types include RJ45 connectors for Ethernet cables and various types of connectors for coaxial and fiber optic cables.
Splitters and Combiners: Splitters divide a signal into multiple paths, allowing one signal source to connect to multiple devices. Combiners, on the other hand, merge signals from multiple sources into a single output. These passive components are often used in applications like cable TV distribution and satellite TV systems.
Passive Optical Networks (PON): PON is a specific type of passive network technology used in fiber optic telecommunications networks. It employs passive splitters to divide optical signals among multiple subscribers without the need for active electronic components in the distribution network. PONs are commonly used in fiber-to-the-home (FTTH) and fiber-to-the-premises (FTTP) deployments.
Power-over-Ethernet (PoE): PoE technology enables the transmission of both data and electrical power over Ethernet cables. While PoE involves active components like PoE switches or injectors, it can be considered part of a passive network infrastructure since it utilizes existing Ethernet cables for power delivery without requiring additional power cables.
Passive Network Topologies: Passive networks can be configured in various topologies, including star, bus, ring, and hybrid configurations. These topologies determine how network devices are connected and how data flows within the network.
Advantages of Passive Networks: Passive networks offer several advantages, including lower initial deployment costs, reduced power consumption (since they do not require active components), and higher reliability (as there are fewer components that can fail).
Limitations: Despite their advantages, passive networks may have limitations in terms of signal attenuation over long distances and limited scalability compared to active networks. Additionally, passive components like splitters can introduce signal loss, which must be carefully managed to ensure adequate signal quality.
Overall, passive networks provide a simple and cost-effective solution for various networking applications, particularly in scenarios where long-distance signal transmission or distribution to multiple endpoints is required.
